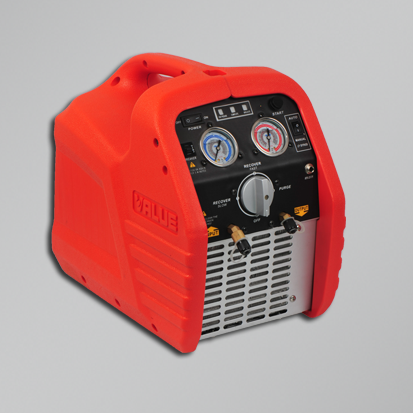

Refrigerant Recovery Machine VRR12L/24L

Next Prev

Refrigerant Recovery Machine

Refrigerant Recovery Machine VRR12L/24L

VRR12L
One key operation,easy to use
Equipped with high pressure protection
Oil-less compressor
Self-purge function
13.5Kg only, easy to carry.

VRR24L
One key operation, easy to use
Equipped with high, low pressure protection
80%over filling protection
Twin-piston, oil-less compressor, faster recovery
Self-purge function




Refrigerants

           VRR12L

           VRR24L

CategoryIII:R-12,R-134a,R-401c,R-500
Category Ⅳ:  R22,R401A,R401B,R402B,R407C,R407D,   R408A, R409A, R411A, R411B, R412A,R502,R509
Category
Ⅴ:R402A,R404A,R407A,R407B,R410A,R507

Power supply

220-240VAC   50-60Hz

Motor

3/4HP

1HP

Motor speed

1450RPM/1750RPM

Maximal current draw

4A

5A

Compressor

Oil-less ,Air-cooled,Piston style

Automatic safety Shut-off

38.5bar / 3850kPa(558psi)

 Recovery Rate



Category  Ⅲ

Category  Ⅳ

Category Ⅴ

Category Ⅲ

Category  Ⅳ

Category  Ⅲ

Vapor

0.20kg/min

0.25kg/min

0.25kg/min

0.40kg/min

0.50kg/min

0.50kg/min

Liquid

1.6kg/min

1.80kg/min

2.20kg/min

3.00kg/min

3.50kg/min

3.50kg/min

Push/Pull

4.60kg/min

5.60kg/min

6.30kg/min

7.50kg/min

8.50kg/min

9.50kg/min

Operating temperature

0℃~40℃

Dimensions

400mm×250mm×355mm

Weight

13.5KG

14.8KG
